Metal Door & Window Frame

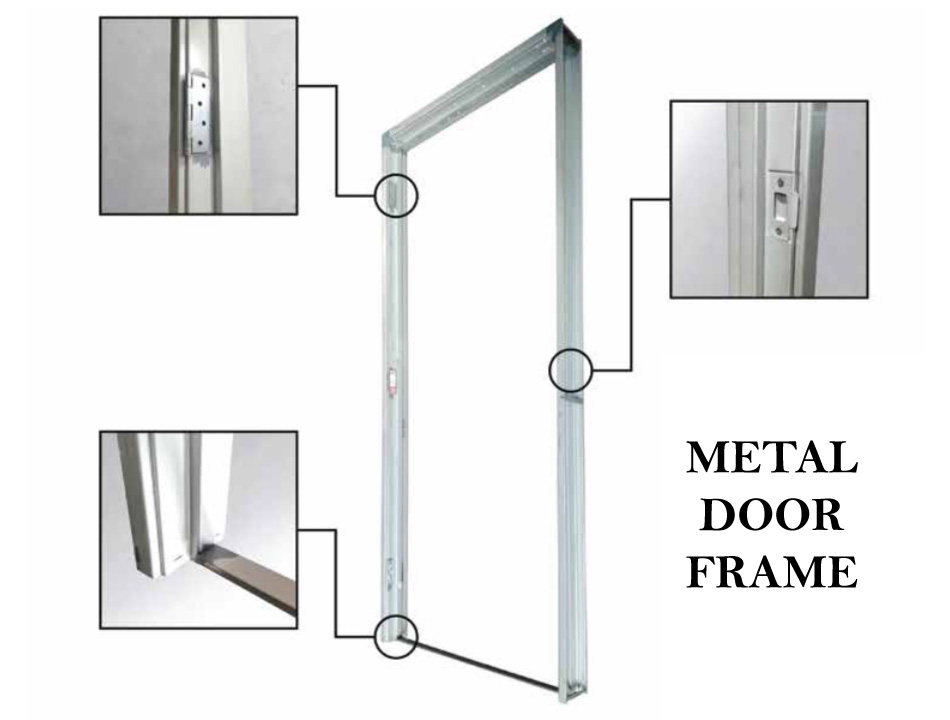

metal door frame
metal window frame

Product Advantages :

  • Consistent quality in strength, will not warp, shrink, twist, rot or suffer from termite attacks.
  • Less maintenance, easy to paint and good security level.
  • Lightweight - easy to carry & installation.
  • Flexibility in design and profile change for easy construction, elegance and cost saving.
  • Non-combustible material.

Materials :

Galvanneal (G.A)

Electro Galvanised Steel (E.G)

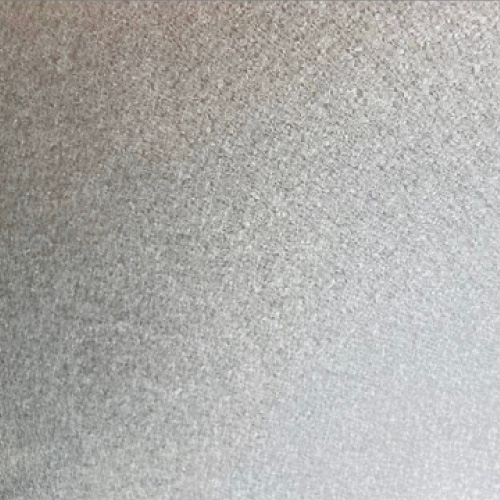

Hot-dipped Galvanised Iron (G.I)

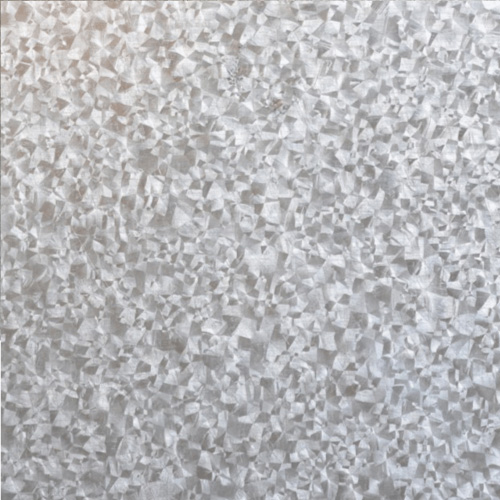

Galvalume

Profile :

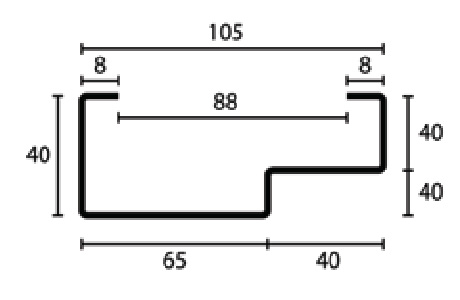

105 STD

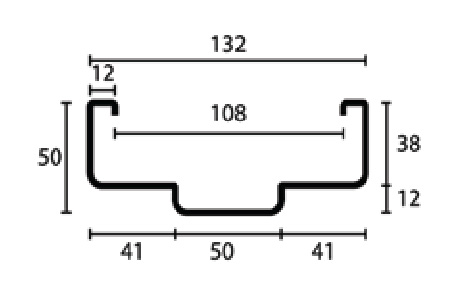

132 STD

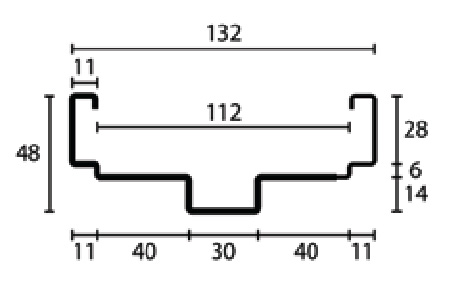

132 WA

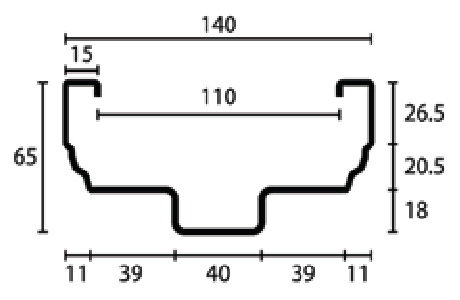

140 WA

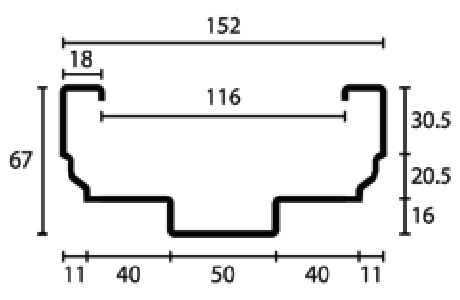

152 WA



Thickness : 0.8 mm - 1.0 mm



Hardware for Door Frame :

  • Hinges (Mild Steel Zinc Plated, Stainless Steel)
  • Build-in Spreader Bar
  • Brick Ties or Fish Tail

Internal Size (Door Frame) :

  • 27 2/8" X 7' (Single Leaf)
  • 30 2/8" X 7' (Single Leaf)
  • 33" X 7' (Single Leaf)
  • 34" X 7' (Single Leaf)
  • 48 2/8" X 7' (Double Leaf)
  • 52 2/8" X 7' (Double Leaf)
  • 60 2/8" X 7' (Double Leaf)
  • 67 2/8" X 7' (Double Leaf)
Cater For Customisation

Hardware for Window Frame :

  • Adjustable / Fixed Louver
  • Security Pipe
  • Mild Steel Solid Bar / Galvanized Round Pipe

Size (Window Frame) :

  • 2' (H) X 2' (W)
  • 2' (H) X 4' (W)
  • 2' (H) X 6' (W)
  • 2' (H) X 8' (W)
  • 4' (H) X 2' (W)
  • 4' (H) X 4' (W)
  • 4' (H) X 6' (W)
  • 4' (H) X 8' (W)
Cater For Customisation





Other

Combination

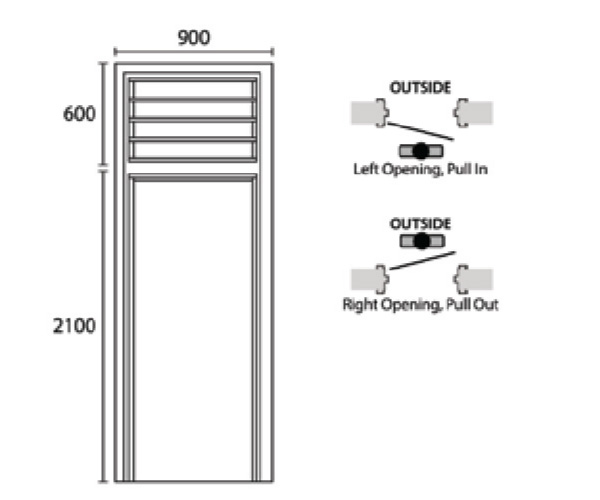

metal door frameMetal Door Frame With Fixed Louvers
metal door frameMetal Door Frame With Casement

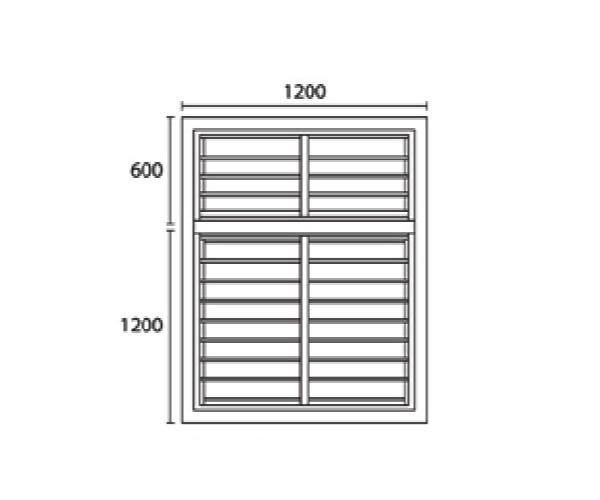

metal window frameMetal Window Frame With Fixed Louvers

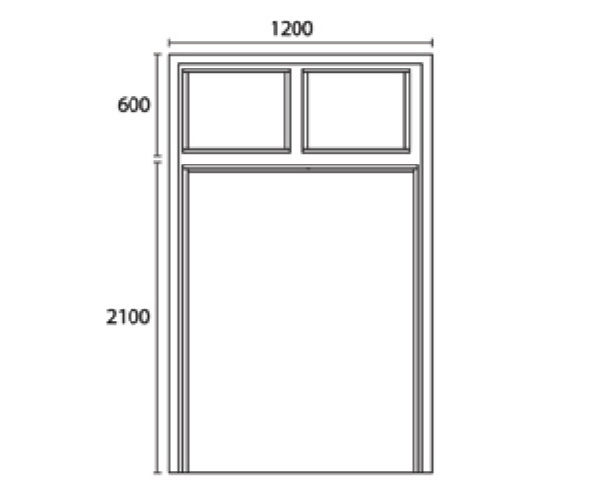

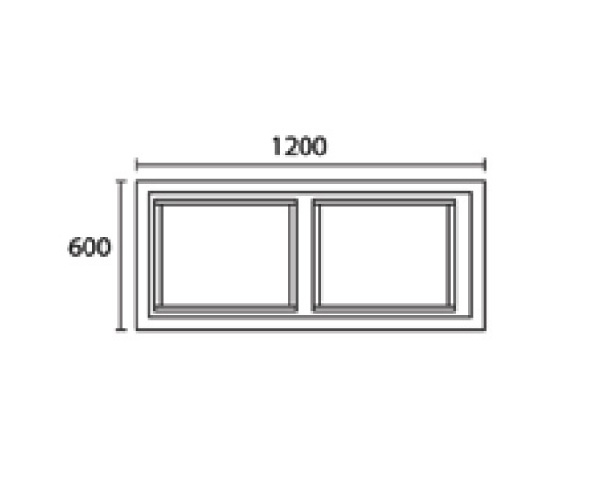

metal window frameCasement Window Frame

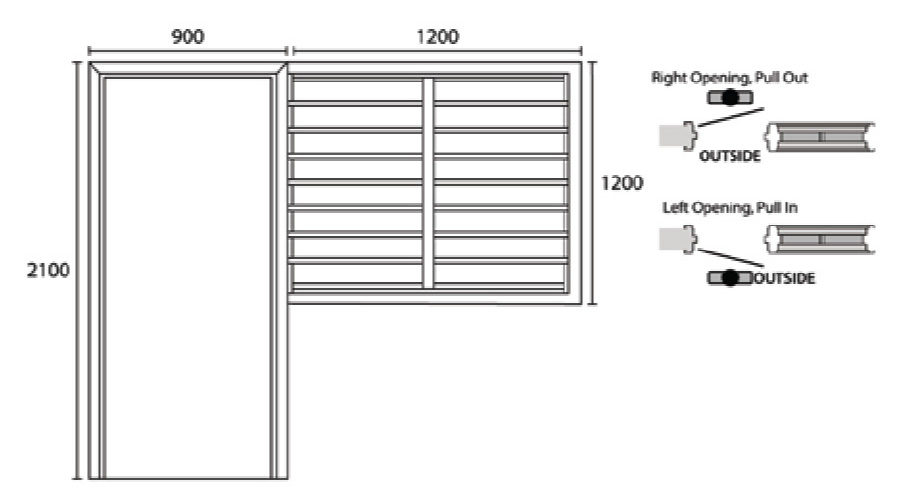

metal Door frameMetal Door Frame With Window Frame

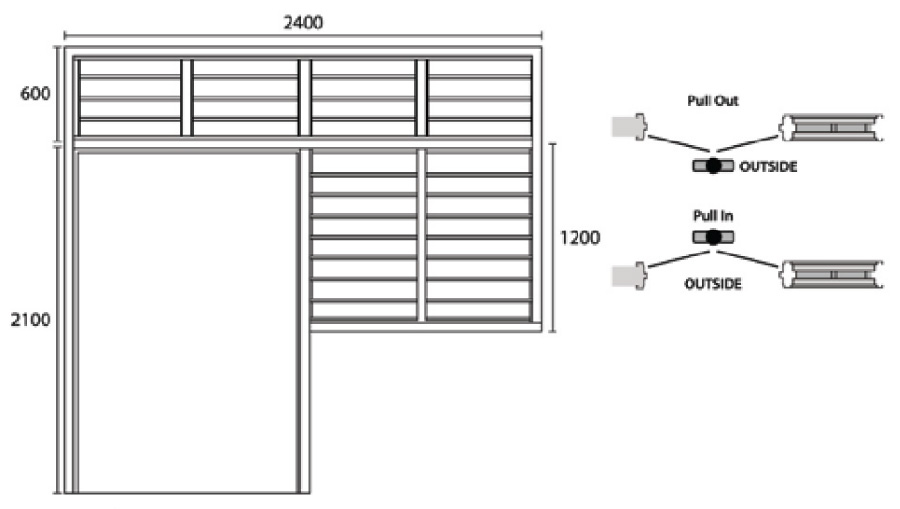

metal Door frameMetal Door Frame With Frame & Fixed Louvers



* We also cater for customised design to suit your needs.





Install & Loose Form

Installation

Mark out the area where the brickwork and the door frame is going to be install.
Use two lenghts of timber to prop up the door frame to standing position.
To check whether the frame is properly plumbed, use the spirit level.
Begin to lay the bricks into the rebate at the back of the frame.
Place mortar into the grap between the brick and the frame to ensure that the frame when filled with cement will be extremely rigid and strong.
Each metal door frame is supplied with a number of wire ties. Use a wire tire every fourth or fifth course of bricks.

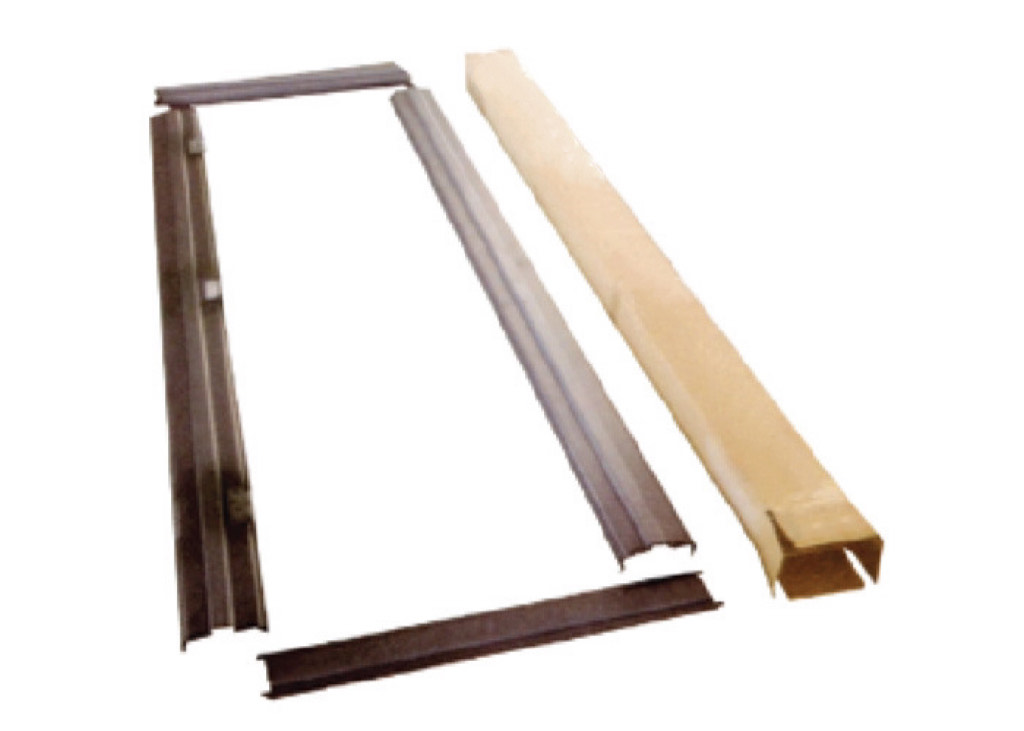

LOOSE FORM DIY

The metal door / window frame is produced without welded due to transportation, space and cost. Install by hand easily.

ORDERING PROCEDURES

1. Frame sizes (width x height), internal or external dimersion.
2. Single leaf or double leaves door frame with quantity of hinges (metal or stainless steel), frame profile and thickness.
3. Frame material.
4. Lockset holes type (for punch lockset hole purpose)

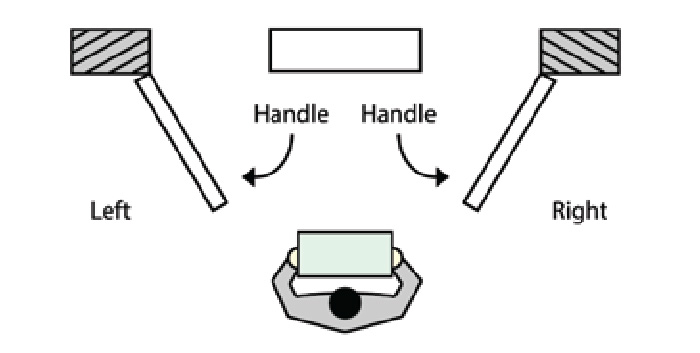

5. Opening (left or right). For metal door and window frame combination, kindly let us know the way of opening (push-in or pull-out).
